SPEEDPLAY

ADVANCED BIKE PEDAL SYSTEM

BUY NOW
Play or pause video

AT ONE WITH YOUR RIDE

As the only dual-sided bike pedal platform, Wahoo SPEEDPLAY delivers best-in-class efficiency, engagement and comfort. Together these benefits provide a direct link between rider and bike, maximizing every stroke through bicycle fit and float tuned to individual pedaling dynamics.

SPEEDPLAY NANO

The featherweight, podium-ready SPEEDPLAY NANO deliver every cycling performance advantage on race-day.

SPINDLE: Titanium
WEIGHT: 168g

SPEEDPLAY ZERO

The breakthrough, race-ready SPEEDPLAY ZERO cycling pedals offer peak power transfer with exceptional durability.

SPINDLE: Stainless Steel
WEIGHT: 222g

SPEEDPLAY COMP

The versatile, ride-ready SPEEDPLAY COMP provides benefits to cyclists of every level.

SPINDLE: Chromoly
WEIGHT: 232g

SPEEDPLAY AERO

The dimpled and streamlined SPEEDPLAY AERO clipless pedals defy wind, boosts speed and gets results.

SPINDLE: Stainless Steel
WEIGHT: 224g

The Speedplay Platform

PLAY VIDEO
Play or pause video

PERFORMANCE BEYOND LIMITS

SPEEDPLAY is the only bicycle pedal system to provide independent 3-Axis Adjustability to optimize bicycle fit and enhance performance through better biomechanics.

SPEEDPLAY bike pedals fore aft position.

IDEAL FORE/AFT PLACEMENT

The cleat base plate provides 14mm of fore/aft adjustability, allowing you to accommodate your unique physiology.

PRECISE SIDE-TO-SIDE TUNING

Further dial in the perfect fit by fine-tuning the cleat spring housing plate’s 8mm of left/right adjustment.

BEST-IN-CLASS BIKE FLOAT

With 0º to 15º of micro-adjustable float, the Speedplay road cycling pedals can be set from a fixed-position to anywhere within the 15-degree range.

AN ENGINEERED ADVANTAGE

Engineered and designed to account for everything, the SPEEDPLAY platform combines a low-profile bicycle pedal with an innovative cleat design to create a truly advanced pedal system, giving roadies and triathletes of all levels a distinct performance advantage.

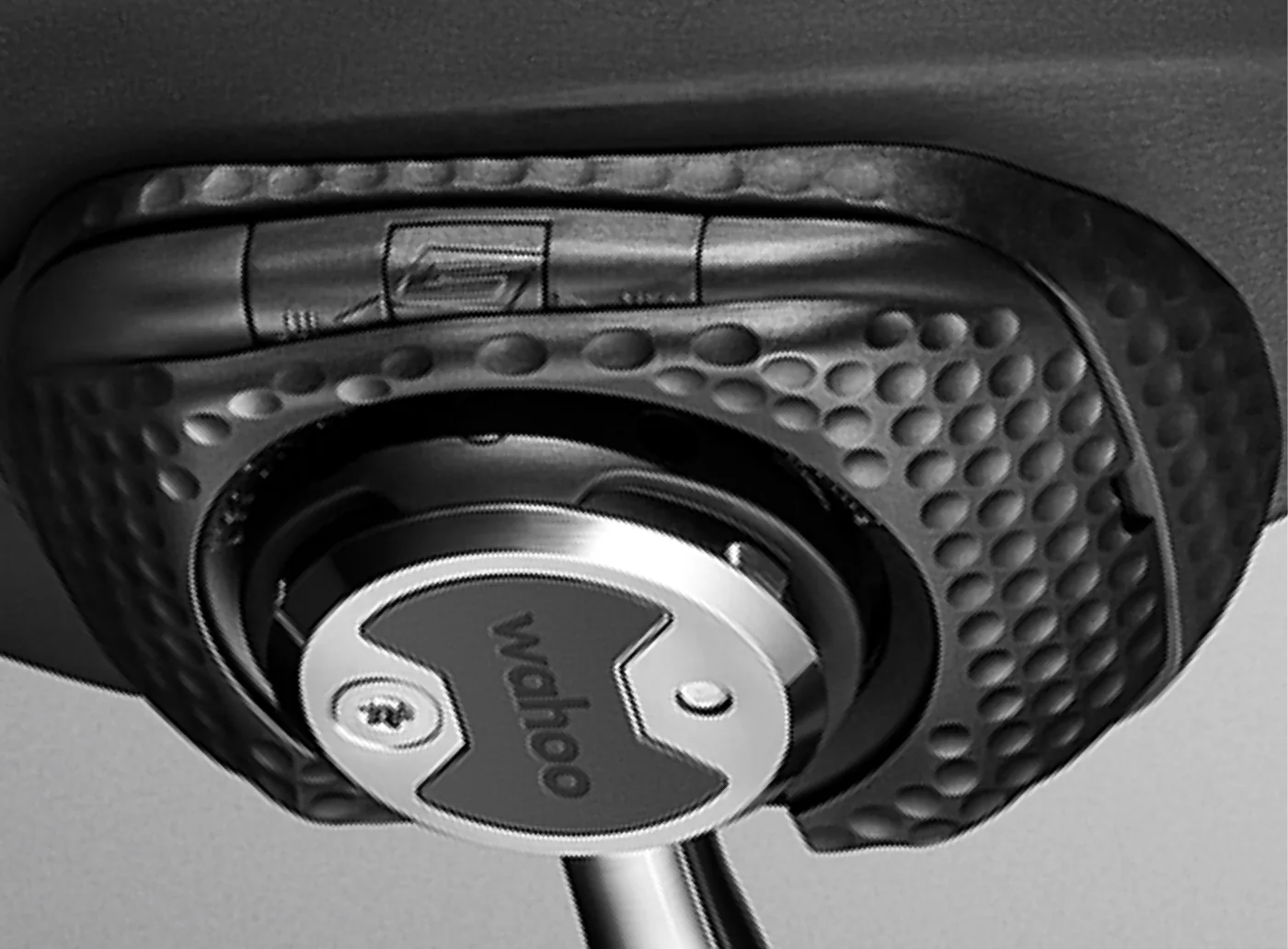

EVERY EFFORT MATTERS

SPEEDPLAY transfers power more efficiently than the competition by removing material between the foot and the spindle to reduce system stack height and reward every effort, big or small.

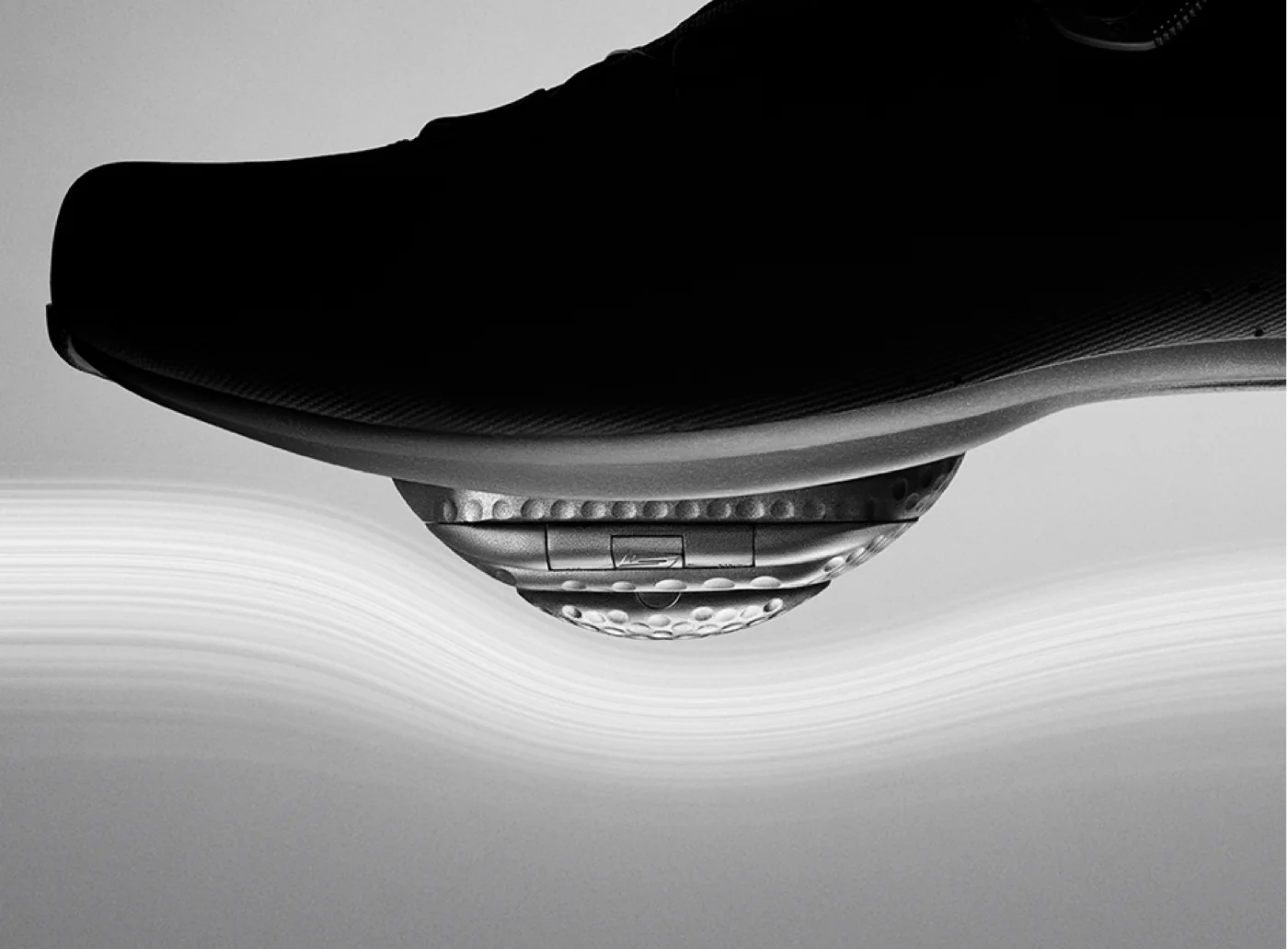

STREAMLINED FOR SPEED

By integrating a cleat with a lower pedal profile, SPEEDPLAY’s aerodynamic system platform decreases drag delivering faster ride speeds without increases in power output.

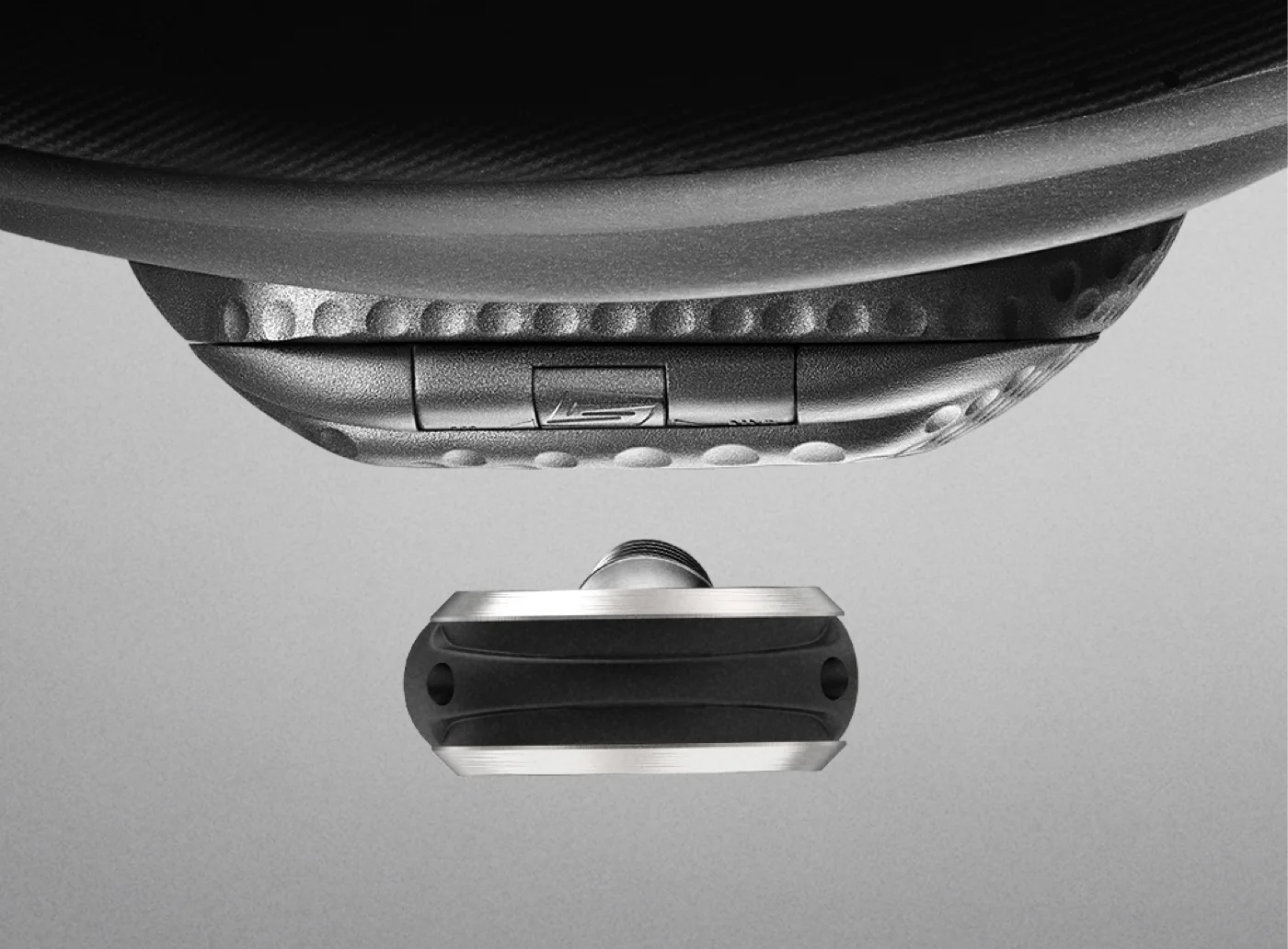

UNRIVALED CONFIDENCE

SPEEDPLAY advanced pedal system is the world’s only dual-sided* road pedal, simplifying engagement and creating a secure and stable platform.

*does not apply to AERO

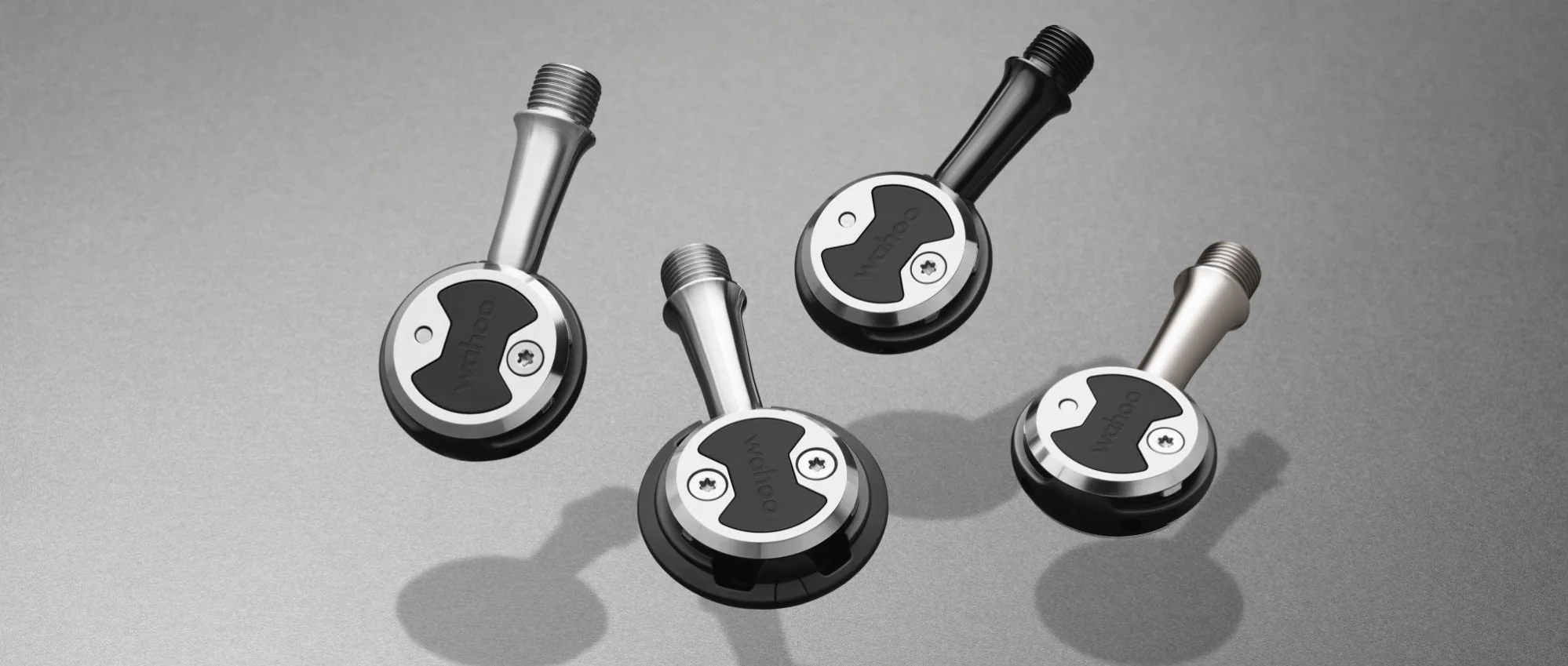

Which Pedals are right for you?

SPEEDPLAY NANO bike pedals

SPEEDPLAYNANO

€449.99
BUY
SPEEDPLAY NANO bike pedals

SPEEDPLAYZERO

€229.99
BUY
SPEEDPLAY NANO bike pedals

SPEEDPLAYCOMP

€149.99
BUY
SPEEDPLAY AERO bike pedals

SPEEDPLAYAERO

€279.99
BUY
Pedal Specifications
  • Unit Dimensions
  • 3.9in x 2in x 2in
  • 3.9in x 2in x 2in
  • 3.9in x 2in x 2in
  • 3.9in x 2in x 2in
  • Weight
  • 168g per pair
  • 222g per pair
  • 232g per pair
  • 224g per pair
  • Stack Height
  • 11.5mm (3 hole)
    8.5mm (4 hole)
  • 11.5mm (3 hole)
    8.4mm (4 hole)
  • 11.5mm (3 hole)
    8.4mm (4 hole)
  • 11.5mm (3 hole)
    8.5mm (4 hole)
  • Body Material
  • Carbon Composite
  • Grivory GV-6H
  • Grivory GV-6H
  • Grivory GV-6H
  • Spindle Material
  • Titanium
  • Stainless Steel
  • Chromoly
  • Stainless Steel
  • Bearing Type
  • Triple Sealed Cartridge & Needle Bearings
  • Triple Sealed Cartridge & Needle Bearings
  • Triple Sealed Cartridge & Needle Bearings
  • Triple Sealed Cartridge & Needle Bearings
  • Cornering Clearance
  • 39°
  • 39°
  • 39°
  • 37°
  • Max Rider Weight
  • 180lbs / 82kg
  • No restriction
  • No restriction
  • No restriction
Cleat Integrations
  • Cleats Included
  • Standard Tension
    (Also compatible with Easy Tension, available to purchase separately)
  • Standard Tension
    (Also compatible with Easy Tension, available to purchase separately)
  • Easy Tension
    (Also compatible with Standard Tension, available to purchase separately)
  • Standard Tension
    (Also compatible with Easy Tension, available to purchase separately)
  • Release Angle
  • Micro Adjustable from 0° to 7.5°
  • Micro Adjustable from 0° to 7.5°
  • Micro Adjustable from 0° to 7.5°
  • Micro Adjustable from 0° to 7.5°
  • Pedal Float
  • Adjustable from 0° to 15°
  • Adjustable from 0° to 15°
  • Adjustable from 0° to 15°
  • Adjustable from 0° to 15°
  • Cleat Fore - Aft Adjustability
  • Up to 13mm
  • Up to 13mm
  • Up to 13mm
  • Up to 13mm
  • Cleat Left - Right Adjustability
  • Up to 6mm
  • Up to 6mm
  • Up to 6mm
  • Up to 6mm
  • Walkable Cleat
  • Yes (adaptor included)
  • Yes (adaptor included)
  • Yes (adaptor included)
  • Yes (adaptor included)
SPEEDPLAY standard tension bike cleat Wahoo Fitness.SPEEDPLAY standard tension bike cleat Wahoo Fitness.

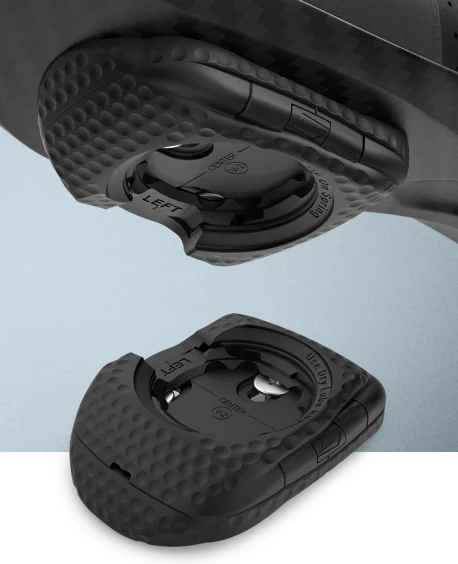

STANDARD TENSION CLEAT

The Standard Tension Bike Cleat is dimpled and comes with an integrated cleat surround for an increased aero advantage. It's a race-level cleat built to handle the demands of the most powerful riders.

SPEEDPLAY easy tension bike cleat Wahoo Fitness.SPEEDPLAY easy tension bike cleat Wahoo Fitness.

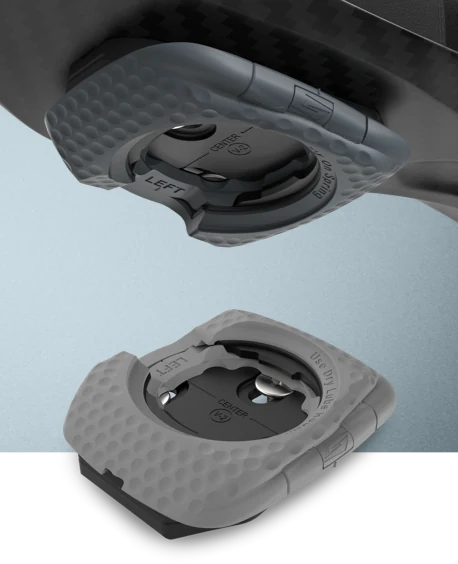

EASY TENSION CLEAT

The Easy Tension Bike Cleat has a light-action spring for easier pedal engagement, offering a stable and secure platform for all-day riding comfort.

SPEEDPLAY walkable cleat cover kit Wahoo Fitness.SPEEDPLAY walkable cleat cover kit Wahoo Fitness.

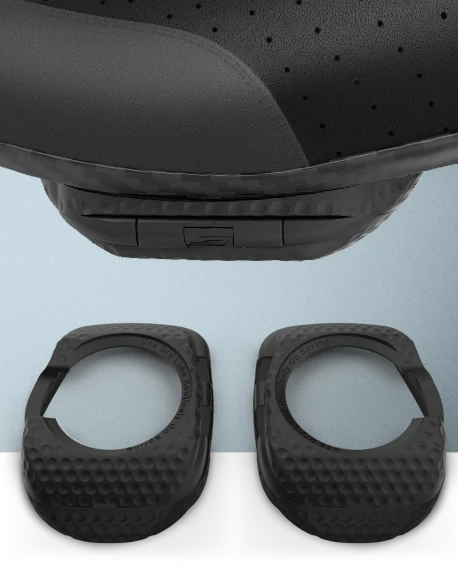

WALKABLE CLEAT COVER KIT

Speedplay Walkable® Bike Cleats are the first truly walkable road cleats. The integrated, rubberized covers stay on the cleats while you are riding. When walking, the covers improve traction and protect the cleats from wear.

Questions

Are Wahoo Speedplay clipless bike pedals compatible with my bike?

Wahoo Speedplay pedals utilize the industry standard 9/16"with 20 threads per inch (14.28 x 1.27mm).

What types of cycling shoes are compatible with Wahoo Speedplay cleats?

Wahoo Speedplay standard tension (included with pedals) and easy tension cleats are compatible with all three-hole and four-hole shoes. Additional compatibility information is available here.

What is the difference between the different models of Wahoo Speedplay clipless pedals?

The primary difference between pedals is spindle material and weight. All Speedplay pedals are dual-sided entry when clipping in, with the exception of Speedplay AERO. Speedplay AERO pedal is designed for aerodynamics and includes a seamless, dimpled profile.
